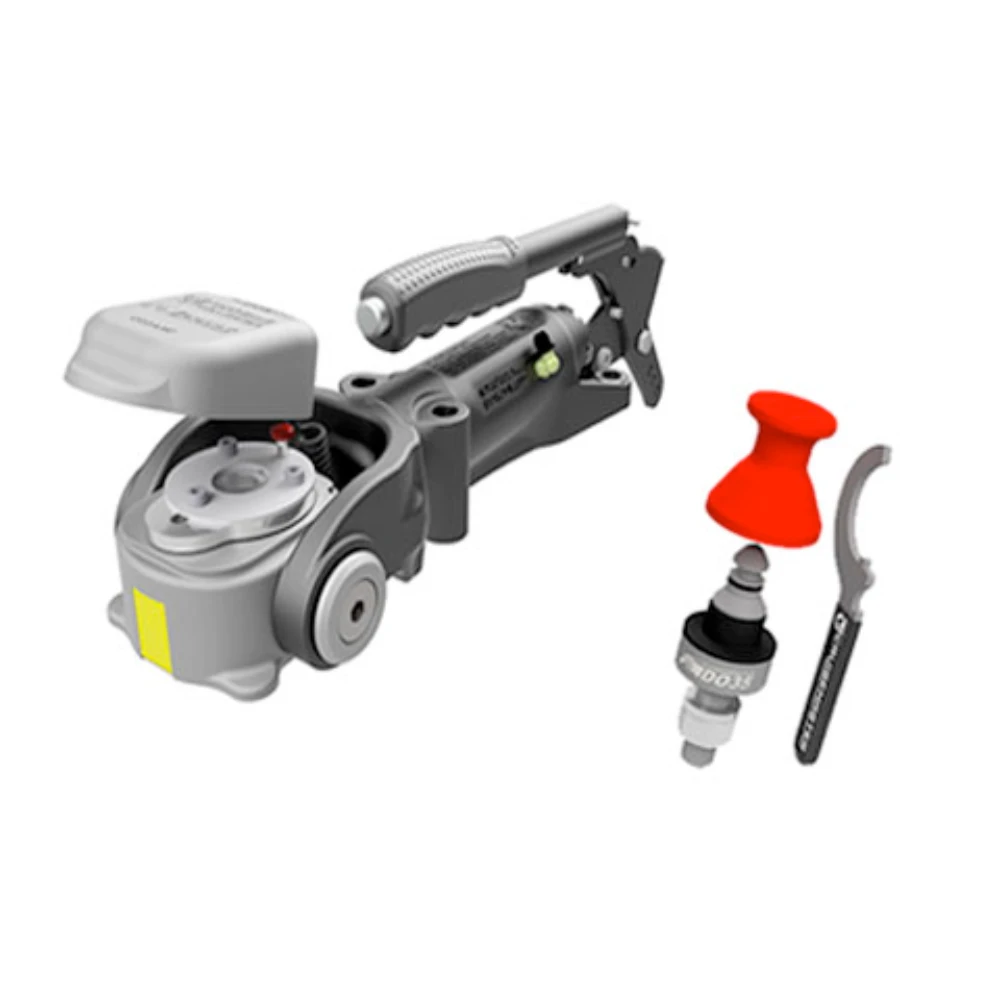

Cruisemaster DO35 V3 Plus Coupling
$430.00
The Cruisemaster DO35 V3 is the simplest to use off-road pin coupling on the market.
Along with the standard Cruisemaster D035 V3 features the DO35 V3Plus has:
- Patented Checklock Gen.2 dust cap and bumper for providing an easy secure seal
- Improved bumper molding giving the reflector strip greater staying power
- Rear support webbing enabling upside-down mounting on the underside of the drawbar
The following items are included:
- DO35 V3Plus (no handbrake)
- Tow pin 7/8″ shaft
- Tow pin cover
- Universal C-spanner
- Fitment bolts
- User guide
Description
Standard V3 features
- 2 Stage ADR compliant locking mechanism
- Low profile bumper and cap for impressive clearance
- High articulation for improved handling off road and on unmaintained roads
- Available with or without handbrake
- Suitable for use with most weight distribution systems
- Forged yoke and rear nut for added strength
- Exceeds ADR 62/01 and 62/02 strength requirements
- One-piece lightweight cast housing
- Standard Aus bolt pattern for easy fitment
- 7/8” shaft to fit most standard tow tongues
- Combination of Zn-Ni and e-coat for superior corrosion protection
- Greaseable bushes for easy maintenance and noisefree towing
- No towball height restrictions
- R.A.T run tested and proven
| Articulation | 360 degrees axial, minimum 70 degrees other axes |
| Locking | ADR 62/02 compliant including automatic secondary lock |
| Bolt Pattern | 4 bolts at 185mm x 54mm |
| Rating | 3.5 Tonne |
| Action | Drop-on |
| Maintenance | Fully greaseable |
Additional information
| Weight | 12 kg |
|---|---|
| Dimensions | 60 × 20 × 20 cm |
